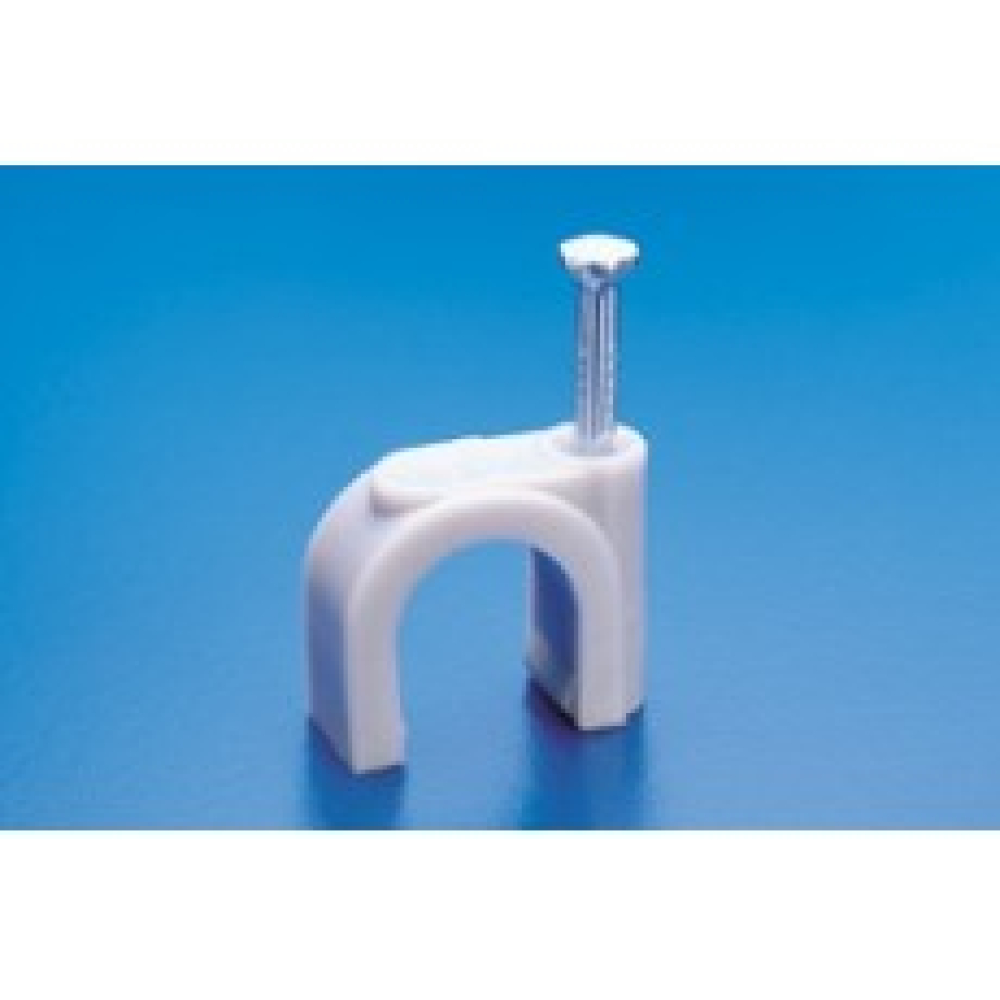

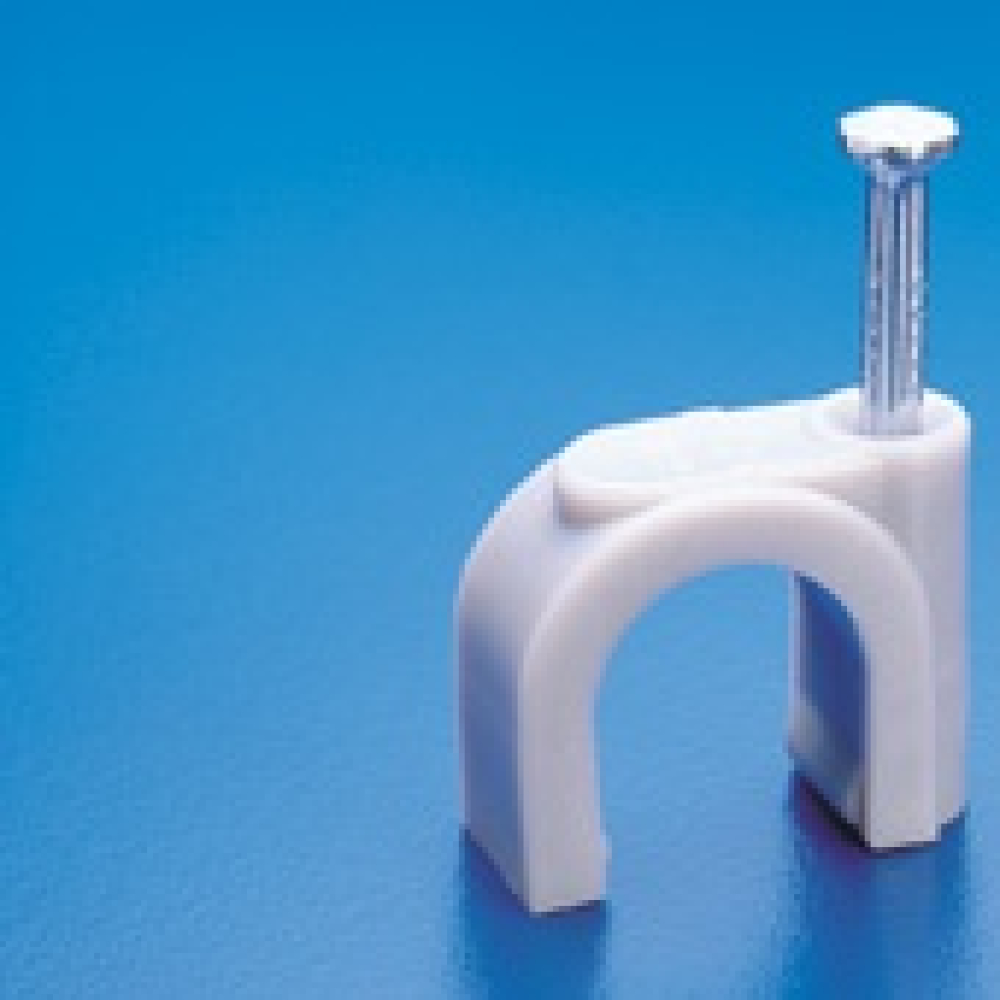

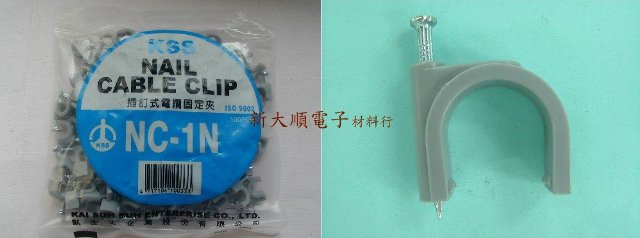

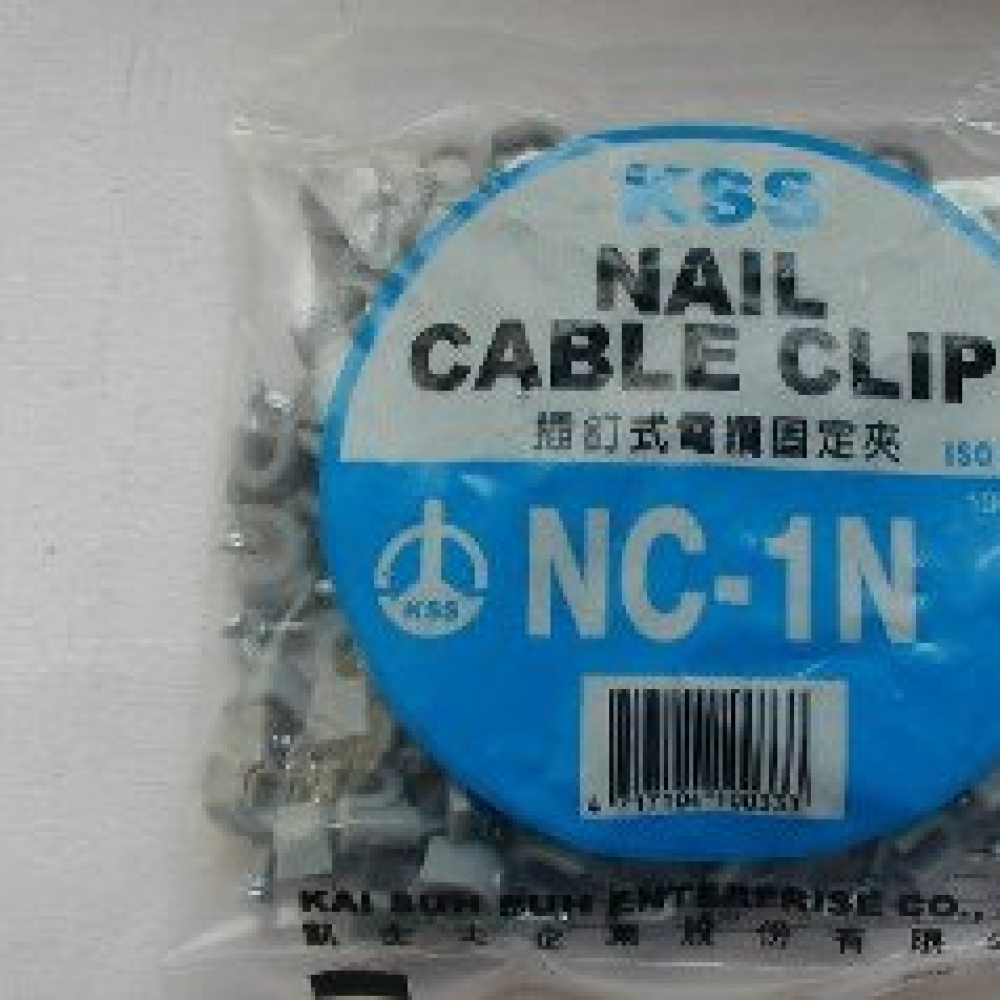

NC-1N號固定夾(灰色)
商品編號: NC-1N
 |
| |||||||||
| 型 號 Item No. | 內寬 W | 內高 H1 | 高 H | 適用電線電纜 Suitable Wires | 鋼釘 Nails | 包 裝 Packing | |||
| NC-0.5NS | 5.00 | 5.00 | 7.6 | 3C 2V天線 5對通信電纜 RG-58U，Cat.5，Cat.5e | 2.0 x 20 | 100 pcs / 包 | |||
| NC-1NS | 6.00 | 6.60 | 9.0 | 10對通信電纜 RG-59U，RG-62U，Cat.6 | 2.0 x 20 | ||||
| NC-2NS | 8.00 | 8.15 | 12.9 | RG-5U | 2.0 x 25 | ||||
| NC-2.5NS | 9.00 | 9.00 | 12.0 | 2C 1.25mm2電纜 3C 1.25mm2電纜 | 2.0 x 25 | ||||
| NC-3NS | 10.00 | 10.40 | 12.8 | 2C 2mm2電纜 4C 1.25mm2電纜 7C 2V天線 RG-8U，RG-11U | 2.0 x 25 | ||||
| NC-0.275N | 2.75 | 2.60 | 4.5 | 1對通信電纜 | 1.65 x 19 | ||||
| NC-0.35N | 3.50 | 3.70 | 5.9 | 1對通信電纜 | 2.0 x 15 | ||||
| NC-0.4N | 4.00 | 4.20 | 6.6 | 電信局用新式一對通信電纜 | 2.5 x 18 | ||||
| NC-0.5N | 5.00 | 5.00 | 7.6 | 3C 2V天線 5對通信電纜 RG-58U，Cat.5e | 2.5 x 18 | ||||
| NC-0.5NBK | 5.00 | 5.00 | 7.6 | 3C 2V天線 5對通信電纜 RG-58U，Cat.5e | 2.5 x 18 | ||||
| NC-1N | 6.00 | 6.60 | 9.6 | 10對通信電纜 RG-59U，RG-62U，Cat.6 | 2.5 x 18 | ||||
| NC-1NBK | 6.00 | 6.60 | 9.6 | 10對通信電纜 RG-59U，RG-62U，Cat.6 | 2.5 x 18 | ||||
| NC-1NL | 6.00 | 6.90 | 10.5 | 10對通信電纜 RG-59U，RG-62U，Cat.6，5C2V天線 | 2.5 x 20 | ||||
| NC-1.5N | 7.00 | 7.50 | 11.0 | 5C 2V天線 RG-6U | 2.5 x 22 | ||||
| NC-1.5NBK | 7.00 | 7.50 | 11.0 | 5C 2V天線 RG-6U | 2.5 x 22 | ||||
| NC-2N | 8.00 | 8.20 | 12.9 | 20對通信電纜 RG-5U | 2.5 x 22 | ||||
| NC-2.5N | 9.00 | 9.00 | 12.8 | 2C 1.25mm2電纜 3C 1.25mm2電纜 | 2.5 x 22 | ||||
| NC-3N | 10.00 | 10.40 | 13.8 | 2C 2mm2電纜 4C 1.25mm2電纜 7C 2V天線 RG-8U，RG-11U | 2.5 x 25 | ||||
| NC-3.5N | 11.00 | 12.20 | 16.6 | 2C 3.5mm2電纜 3C 2mm2電纜 | 2.5 x 27 | ||||
| NC-4N | 12.00 | 12.30 | 16.0 | 3C 3.5mm2電纜 4C 2mm2電纜 | 2.5 x 27 | ||||
| NC-6N | 14.00 | 15.60 | 20.0 | 2C 5.5mm2電纜 3C 5.5mm2電纜 | 3.0 x 35 | ||||
| NC-7N | 16.00 | 17.00 | 21.7 | 3C8mm2電纜，4C5.5mm2電纜 | 3.2 x 38 | ||||
| NC-7.2N | 18.00 | 17.50 | 22.4 | 4C8mm2電纜，3分管，3/8"PVC管 | 3.2 x 38 | ||||
| NC-7.3N | 19.00 | 18.60 | 23.3 | 2C 14mm2電纜 4C 8mm2電纜 | 3.2 x 38 | ||||
| NC-7.5N | 20.00 | 18.50 | 23.5 | 3C 14mm2電纜 | 3.2 x 38 | ||||
| NC-8N | 22.00 | 23.00 | 27.8 | 2C 22mm2電纜 4分管，1/2" PVC管 | 3.2 x 42 | ||||
| NC-9SN | 23.00 | 24.10 | 29.0 | 3C 22mm2電纜 | 3.2 x 47 | ||||
| NC-9N | 25.00 | 25.00 | 30.4 | 3C 30mm2電纜 6分管，3/4" PVC管 | 3.2 x 47 | ||||
| NC-10N | 32.00 | 33.50 | 40.0 | 3C 60mm2，1"PVC水管 | 3.6 x 56 | 50 pcs / 包 | |||
| NC-10.2N | 34.00 | 34.00 | 40.0 | 3C 80mm2電纜，1吋管，1"PVC電管 | 3.6 x 56 | ||||
